XTC Power Products XTC Universal Self-Canceling Turn Signal System With Horn Includes OEM Interface Wires

Description

XTC Universal Self-Canceling Turn Signal System with Horn Includes OEM Interface Wires

FEATURES

Fits any brake system with 12v power in
Includes two .75″ 3 LED front Amber Lights

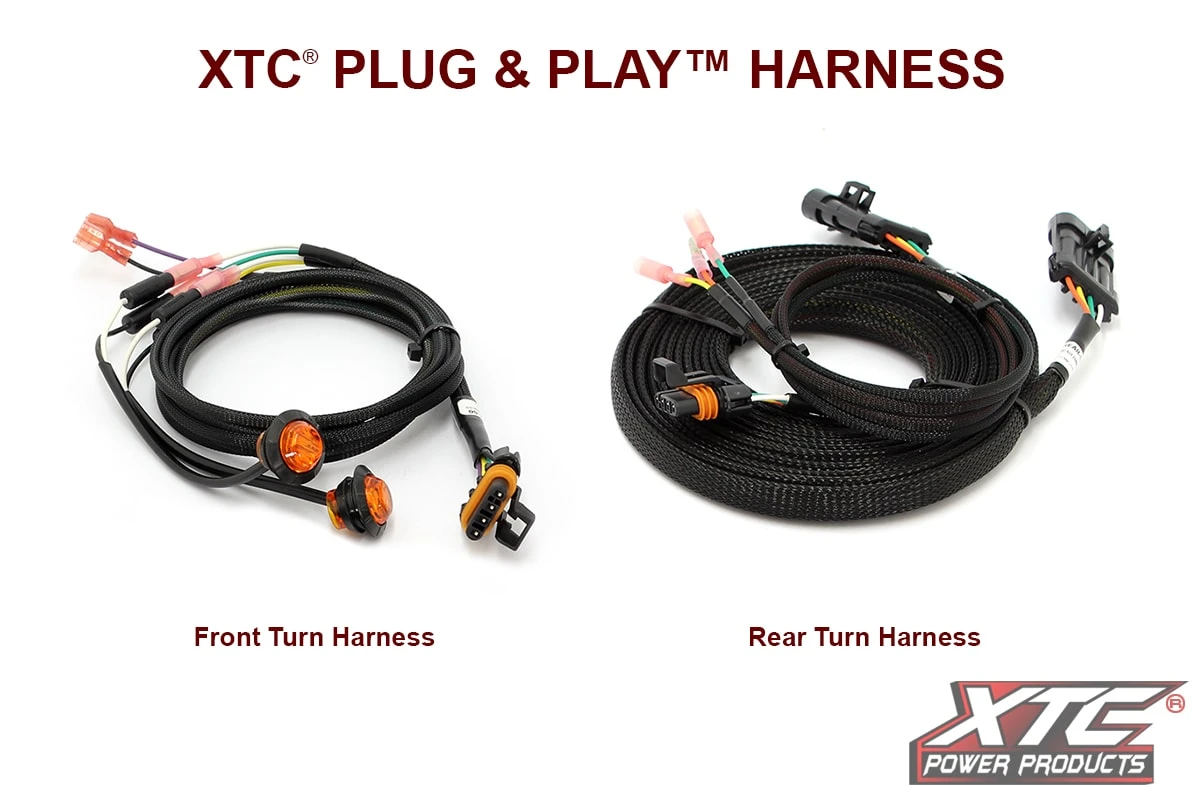

Integrates into OEM Brake Light Harness, using Factory Rear Lights
Laser Etched LED Lit Turn Switch
Lit Emergency Hazard Switch
Rear Power Out for optional license plate light
Made in the USA!

Universal Self-Canceling Turn Signal Kit with OEM Interface Wires

XTC Power Products Leads the way in UTV wiring. You will never leave your turn signal on with our new Universal Self-Canceling Turn Signal System. Similar to its predecessor, the TSS (Turn Signal System), the ATS-UNI-I is an intermediate level install universal turn signal kit. The ATS consists of a small solid-state control box that performs its functions differing from the prior generation’s larger control box. Like the TSS, the ATS Self-Canceling Turn Signal Kit is a modular design with vehicle specific SKUs.

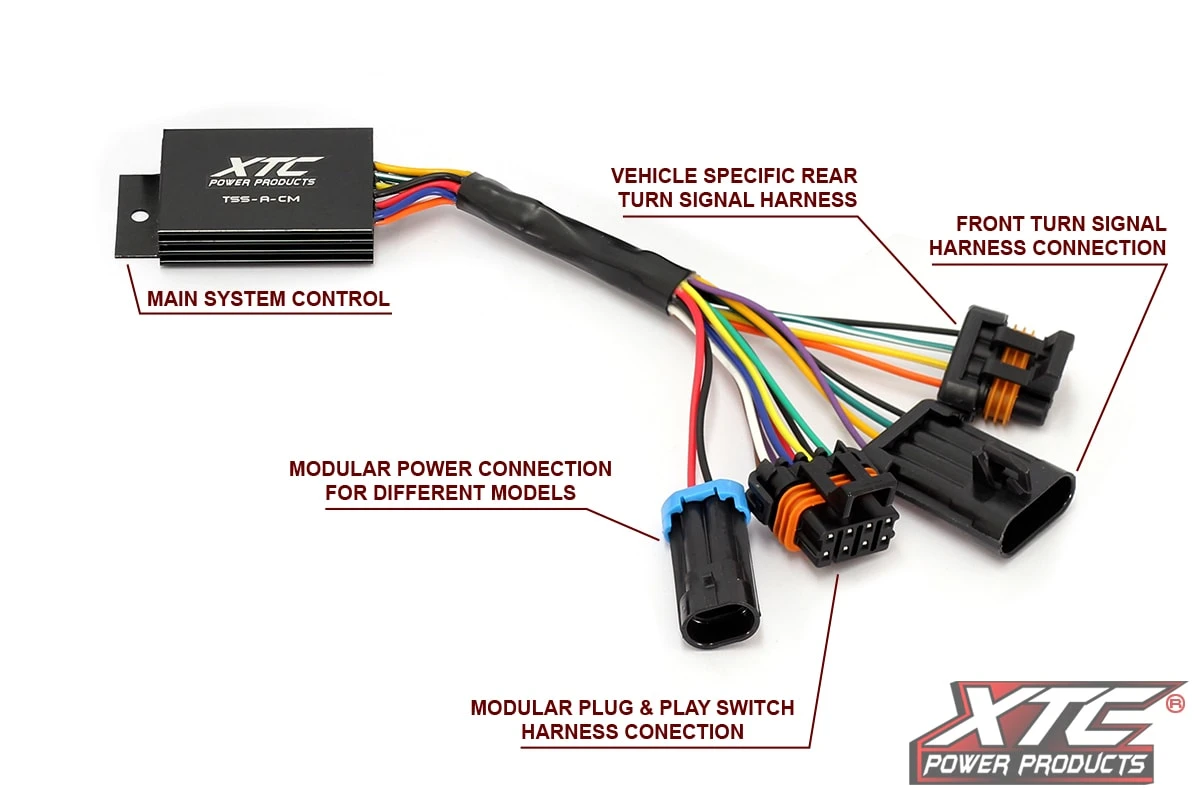

How the ATS Works

All ATS part numbers include a marine grade rocker switch with laser-cut directional arrows that flash green when activated. When you press the turn signal rocker switch, the ATS will activate the turn blinker for a short duration and then self-cancel. This feature is useful for simple lane changes. On the other hand, an extended rocker switch press will yield a longer blinker duration suitable for making left- and right-hand turns. You can manually cancel the turn signal by pushing the actuator a second time.

Also Included

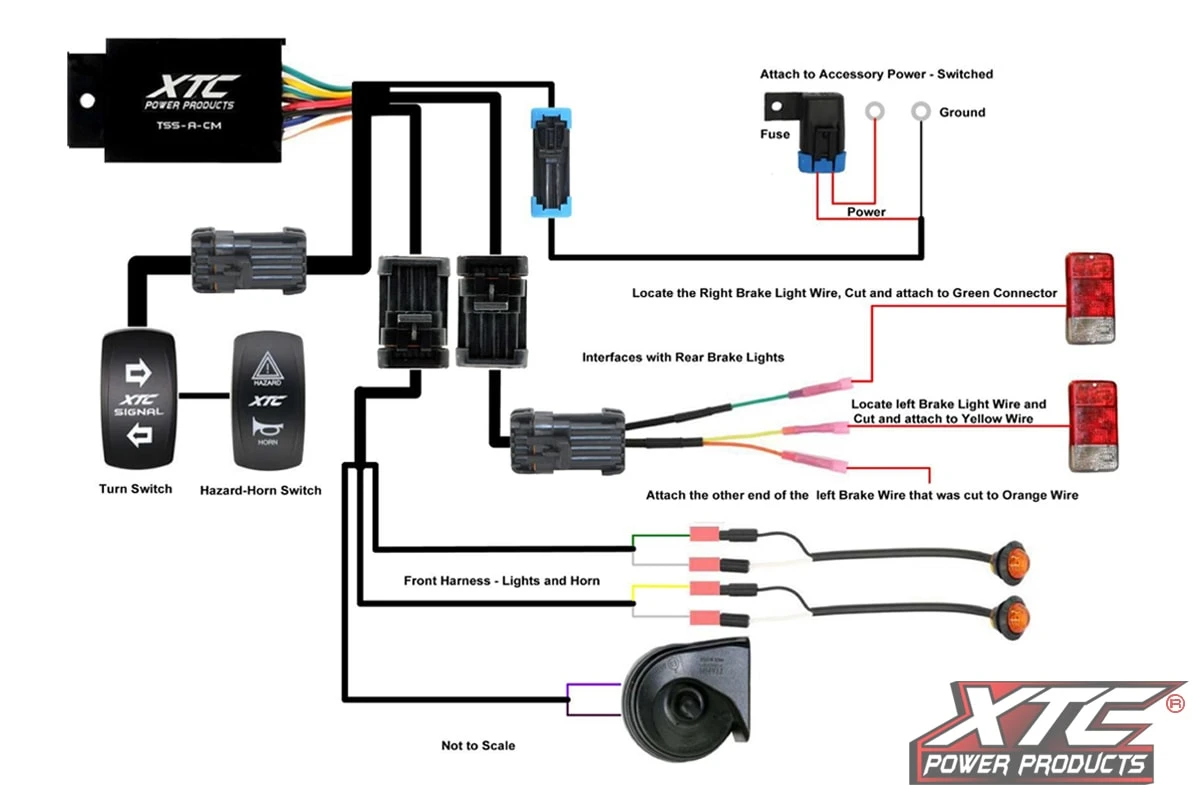

Also included in our Universal Self-Canceling turn signal kit is a ‘Hazard/Horn’ rocker switch. Pressing the top ‘Hazard’ side of the actuator will turn on the hazard lights, pressing it again deactivates them. Furthermore, pressing the lower portion of the custom rocker switch will activate the included street legal FIAMM horn. The ATS-UNI-I includes OEM interface wires that splice into any positive 12V tail light system(see diagram below.) The brake light signal passes through the ATS. As a result, the opposing brake light still functions normally while the activated turn signal brake light flashes.

Hands-on with the Universal Self-Canceling Turn Signal Kit

Unlike our competitors, all ATS kits include an auxiliary power out for a license plate light or whip lights. Moreover the aux power is good for powering our 6″ LED Lit License Plate Frame. Above all, each system comes with a vehicle specific power connection. Without a doubt, it’s easy to install with no wires to cut and no crimping. Because of its size, the ATS is versatile to mount as well. Everything needed to integrate with your vehicles OEM brake light harness included. Unplug the rear light harness, plug-in ours, and enjoy. XTC Power Products, made in America and Wired For Fun!
