SuperATV Kawasaki Teryx Z-Bend Tie Rod Kit

Description

SuperATV Kawasaki Teryx Z-Bend Tie Rod Kit

At SuperATV, we want you to have the confidence that your machine is as tough as it looks. That’s why we’ve upgraded the steering components of our Kawasaki Teryx 6” Lift Kit. Our structurally improved tie rods are made of heavy-duty 7/8” solid tubing and have been reinforced with extra 1/2” gussets at each bend. We’ve over-engineered these to make them as indestructible as possible so you can ride hard on Kawasaki Teryx 6” Lift Kit without worrying about losing your steering. And thanks to the inner and outer threads being opposite, you can easily adjust your toe on the fly!

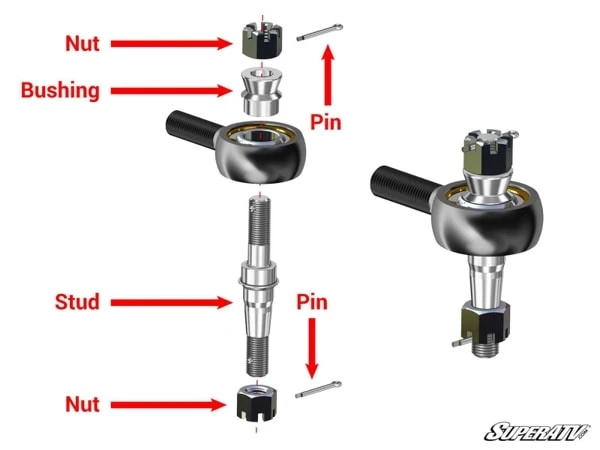

This kit also comes with our new heavy-duty tie rod ends. SuperATV specifically designed and engineered these tie rod ends to perform better, last longer, and work harder than your OEM tie rod end. We want you to be confident in these tie rod ends, that’s why we designed each tie rod end to utilize a monoball bearing style end that is pressed into the housing and then secured with a circlip. Each SuperATV tie rod end has increased size, improved functionality, and comes with an exceptional blend of 4130 Chromoly and heat treatment.

All of this is backed by SuperATV’s Lifetime Warranty so you never have to buy another tie rod kit again!

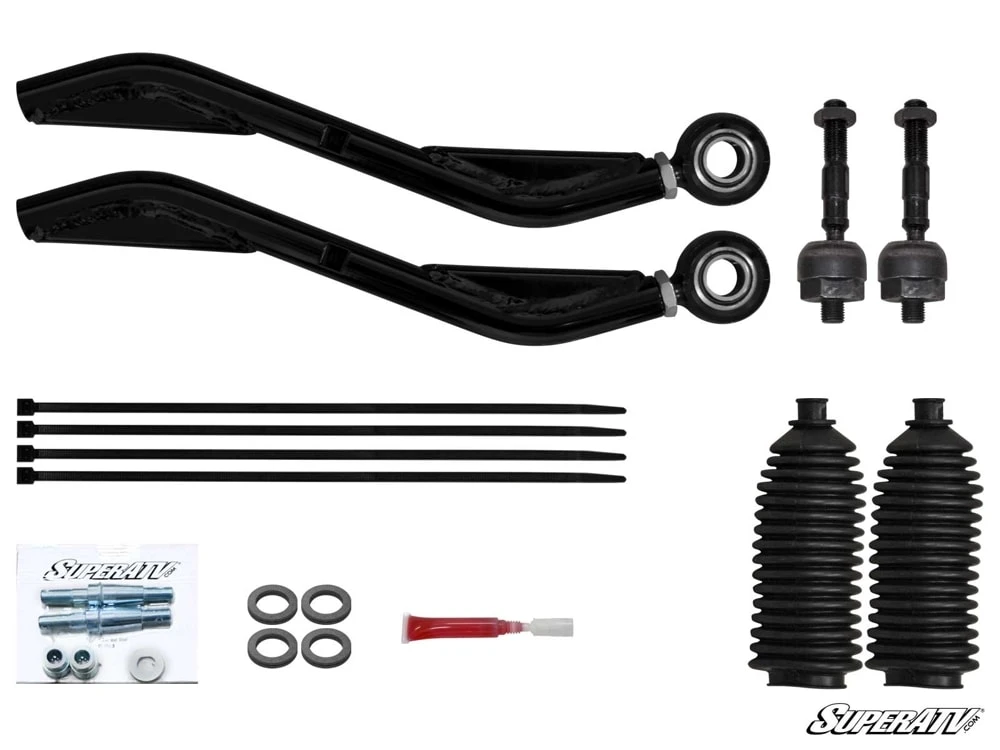

Kit Includes:
Heavy-Duty Gusseted Tie Rods
Heavy-Duty Tie Rod Ends
Tie Rod Studs
Inner Ball and Sockets
Rubber Boots and Zip Ties
All Hardware needed for Installation

NOTE: This replacement Z-bend tie rod kit is only for use with SuperATV’s Kawasaki Teryx 6″ Lift Kit.



Features:

Tie Rod End Features:

• 4130 Chromoly
• Heavy-duty design
• Precision blend of materials and heat treatment

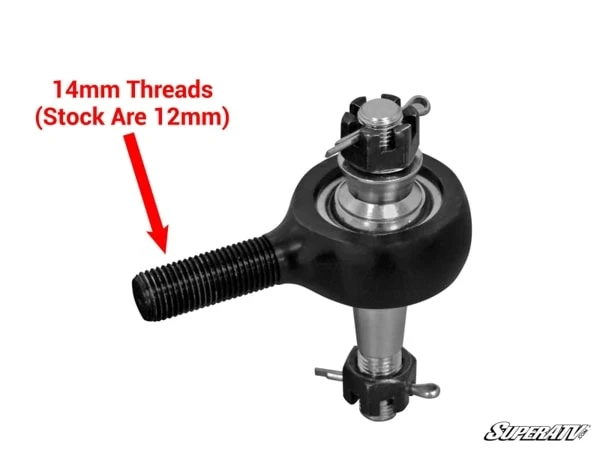

• M14x1.5 threads

Tie Rod Features:

• 7/8″ tubing
• Solid tube design
• Both bends are reinforced with heavy-duty 1/2″ gussets
• Easy to adjust toe
• M14x1.5 threads
• Backed by a Lifetime Warranty



Fitment:

Replacement for tie rods in these kits:

• SA-LK-K-TRX4-6
• SA-LK-K-TRX4-6-001
• SA-LK-K-TRX4-6-001-R2

NOTE: Does not fit the Teryx 4 S
