Description

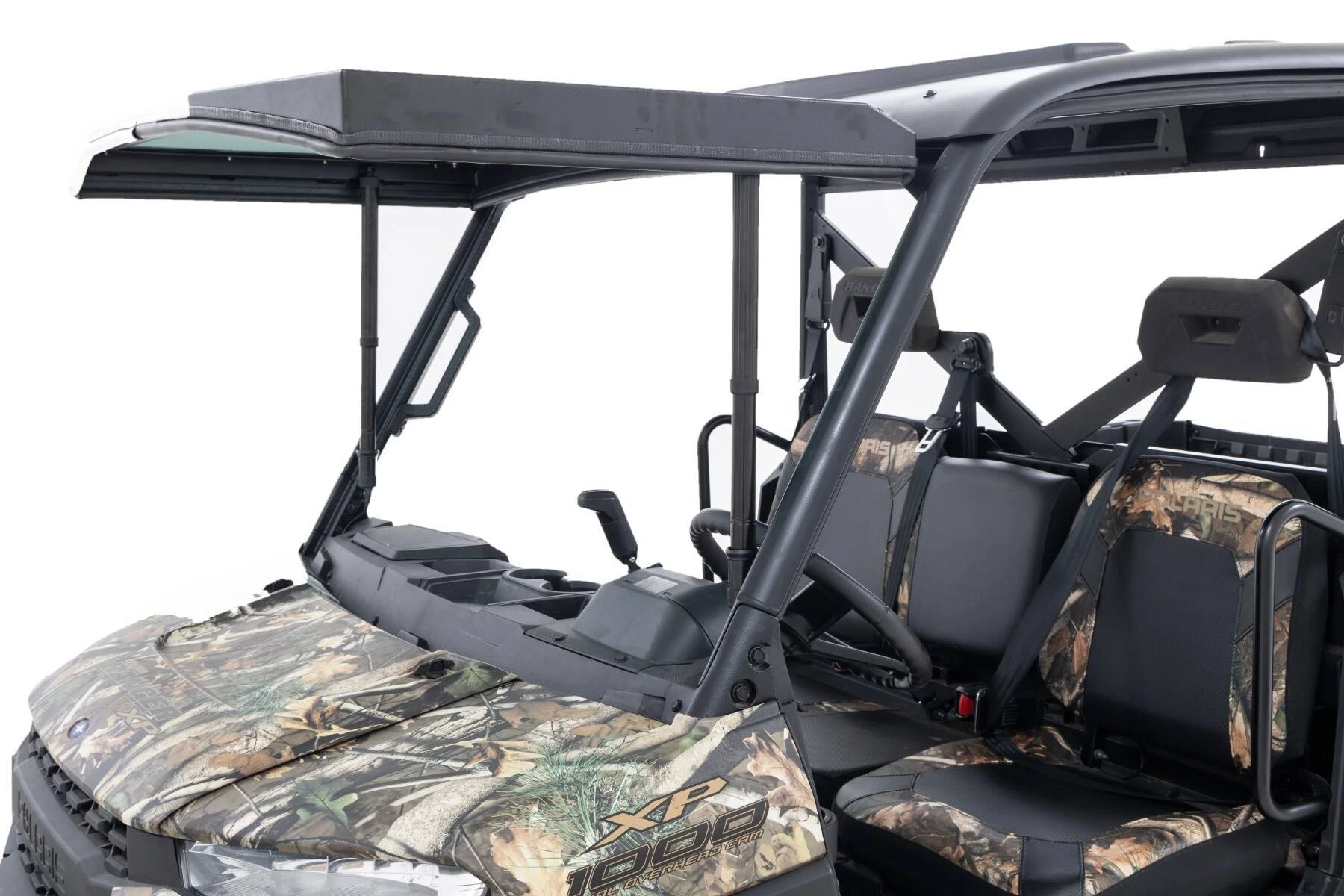

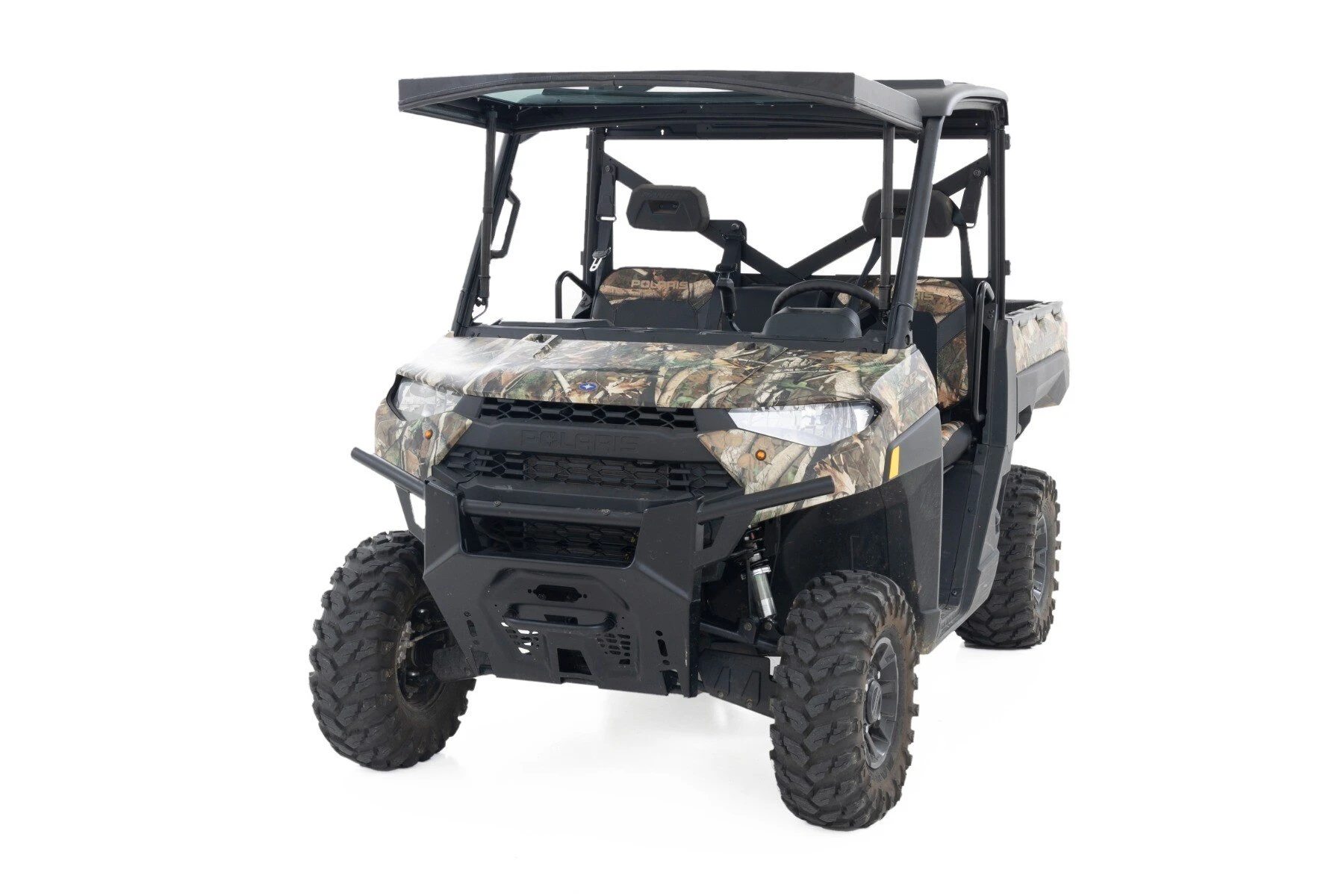

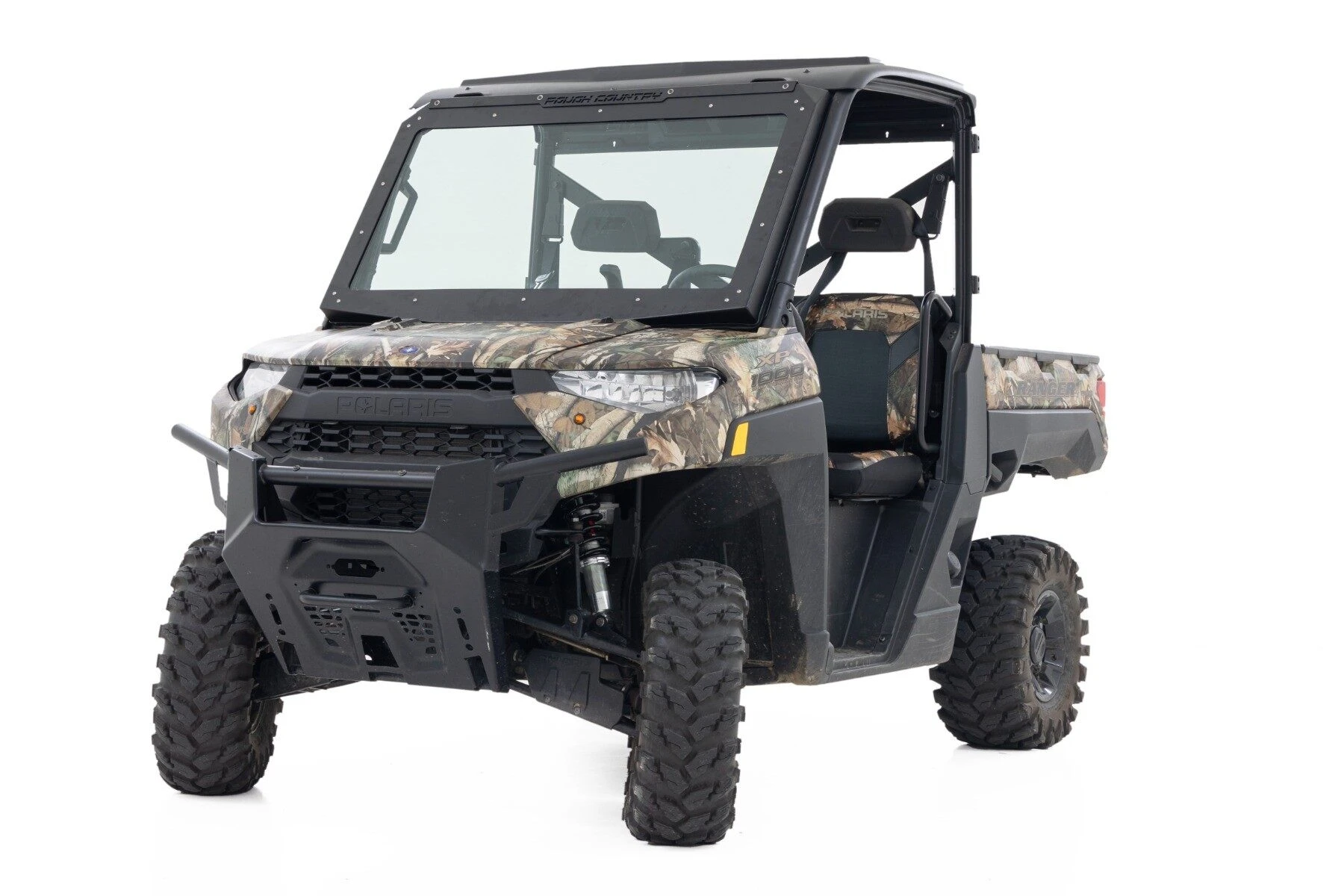

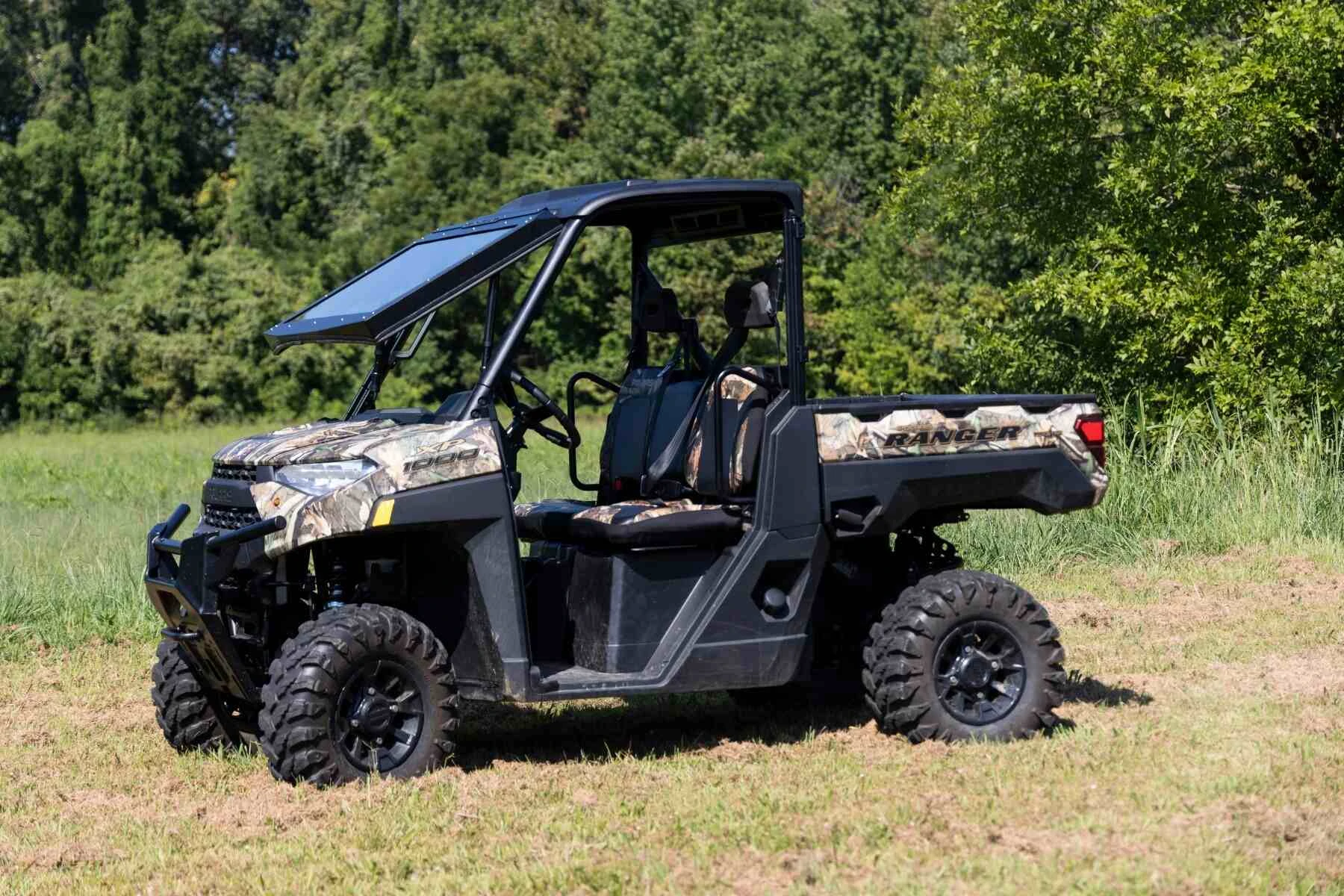

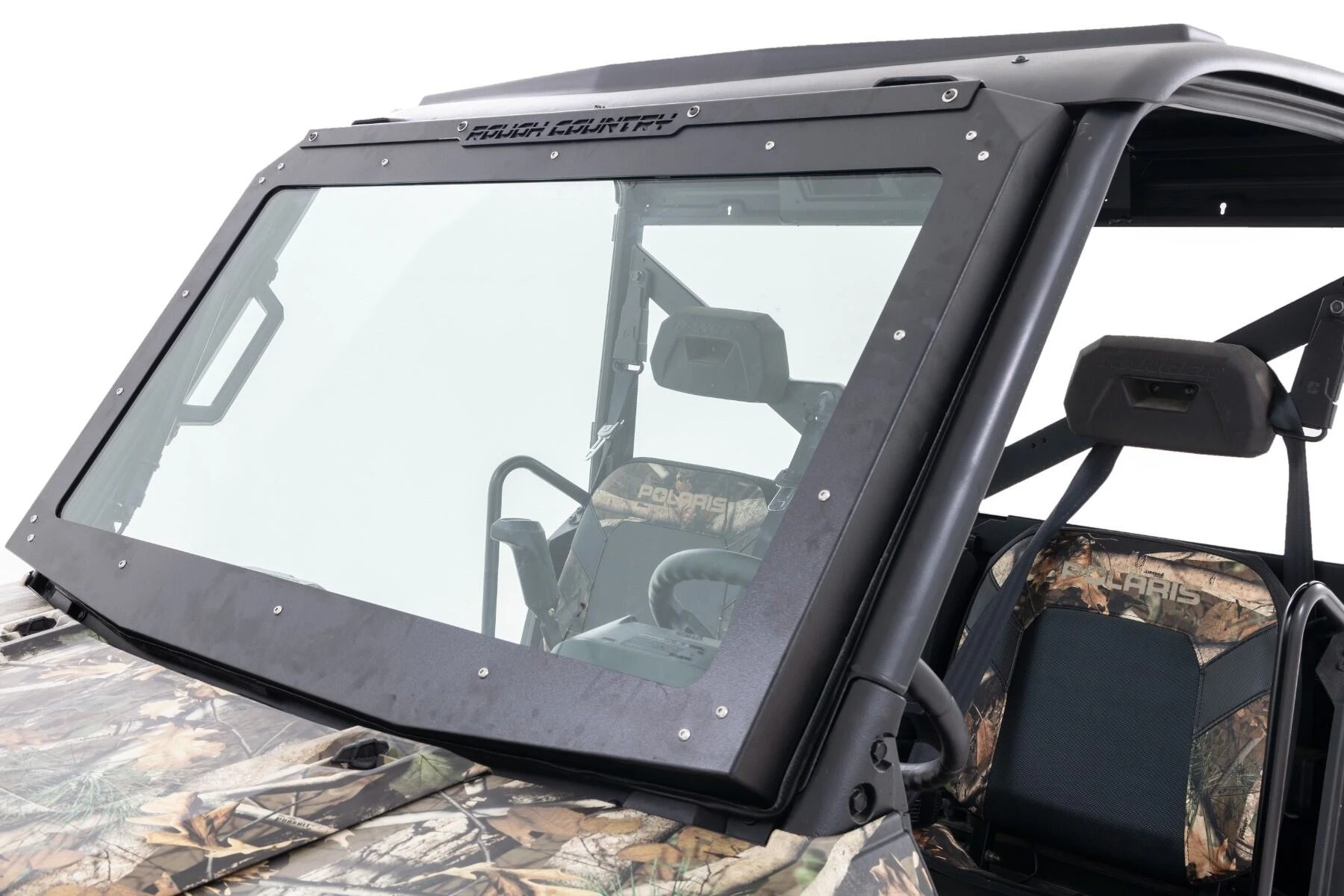

Rough Country ’17-’22 Polaris Ranger XP1000/1000 4WD Power Flip Glass Windshield
Â
Maximum Durability and Visibility. Say hello to a whole new view with Rough Country’s Auto-Tilt Glass Windshield for the Polaris Ranger. With its DOT-approved glass and sturdy construction, this windshield is less likely to crack or break, even when driving through rough terrain. The Auto-Tilt Glass Windshield for Polaris Ranger is the perfect accessory for your off-road vehicle, giving you unobstructed visibility. Our windshield is built to make your ride safer, so you can focus on the trail ahead.
Heavy-Duty Reliability. The Auto-Tilt Windshield is installed in a heavy-duty metal frame with UV and scratch-resistant powder coating that can withstand all weather conditions. And with weather seal protection, the glass will stay in excellent condition for years to come. It features an easy-to-use rocker switch, so you can open the windshield slightly for minimum airflow or fully open it for maximum airflow. The push-button control with dual linear actuators is so easy to use that you can even adjust mid-ride. The glass is built for long-lasting reliability because the rugged design of your Ranger deserves a windshield that is just as tough.
Installation. Our new Auto-Tilt Glass Windshield can be installed on Polaris Ranger models for a clear view and added protection. The windshield comes with the hardware needed for an easy install that includes some minor drilling.
Warranty. Rough Country’s Auto-tilt Glass Windshield is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty, give yourself peace of mind when using Rough Country’s products!
Â
Features:
- Metal Frame with UV and Scratch Resistant Powder Coating.
- DOT Approved Glass – Scratch & Impact Resistant
- Electrically actuated with position control – Open slightly for airflow or fully open for max airflow.
- Open and close with the push of a button.
- Edge seal creates a seal against the face of the vehicle blocking out most dust and water.
- Easy installation.
Â
Cylinder Specifications:
- Input Voltage: 12V
- Stroke: from 382±3mm to 586±3mm
- Force: 410N. Max support 45KGs
- Speed(no load): 10mm/s
- IP Rating: IP65
- Working Temp: -5-50℃
- Current(full load): 5A
Â
Specs:
SKU: RC-98317221
Est. Install Time: 1-2 hours
Â
In The Box:
Parts: (1) Windshield Frame, (1) Hinge Support, (1) Driver Side Hinge, (1) Passenger Side Hinge, (1) Driver Side Actuator Bracket, (1) Passenger Side Actuator Bracket, (1) Glass, (1) Actuator, Glass Retainers, Seals
Â
Instructions:
View Instruction Sheet
Â
VEHICLE FITMENT
Â
| YEARS | DRIVE | MAKE | MODEL |
|---|---|---|---|
| 2020-2022 | 4WD | Polaris | Ranger 1000 |
| 2020-2023 | 4WD | Polaris | Ranger 1000 Crew |
| 2017-2022 | 4WD | Polaris | Ranger XP 1000 |
| 2019-2019 | 4WD | Polaris | Ranger XP 1000 Back Country Edition |
| 2019-2019 | 4WD | Polaris | Ranger XP 1000 Back Country Edition Crew |
| 2017-2022 | 4WD | Polaris | Ranger XP 1000 Crew |
| 2019-2022 | 4WD | Polaris | Ranger XP 1000 High Lifter Edition |
| 2019-2022 | 4WD | Polaris | Ranger XP 1000 High Lifter Edition Crew |
| 2020-2022 | 4WD | Polaris | Ranger XP 1000 Texas Edition |
| 2020-2022 | 4WD | Polaris | Ranger XP 1000 Texas Edition Crew |
