MB Quart GMR-LED Nautic 160 Watt Powered Source Unit

Description

MB Quart GMR-LED Nautic 160 Watt Powered Source Unit

• MB Quart OFF-ROAD & Marine Multimedia Source Unit with 160 Watt internal amplifier features AM/FM/Bluetooth.



Features:

Marine Grade Protection / IPX Rating	Meets or excceds IPX67 requirments for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors.
Apple® Control	Quick control and access of iTunes collection with iPhone, iPod and iPad.
Source Type	AM/FM/Bluetooth® Enabled Gauge Mount Radio allows all access to radio stations and content from Bluetooth enabled devices.
Input Types	Bluetooth, RCA, USB: Nearly nothing the device can not play.
Control Buttons	Unit is adjusted by master knob and menu selection.

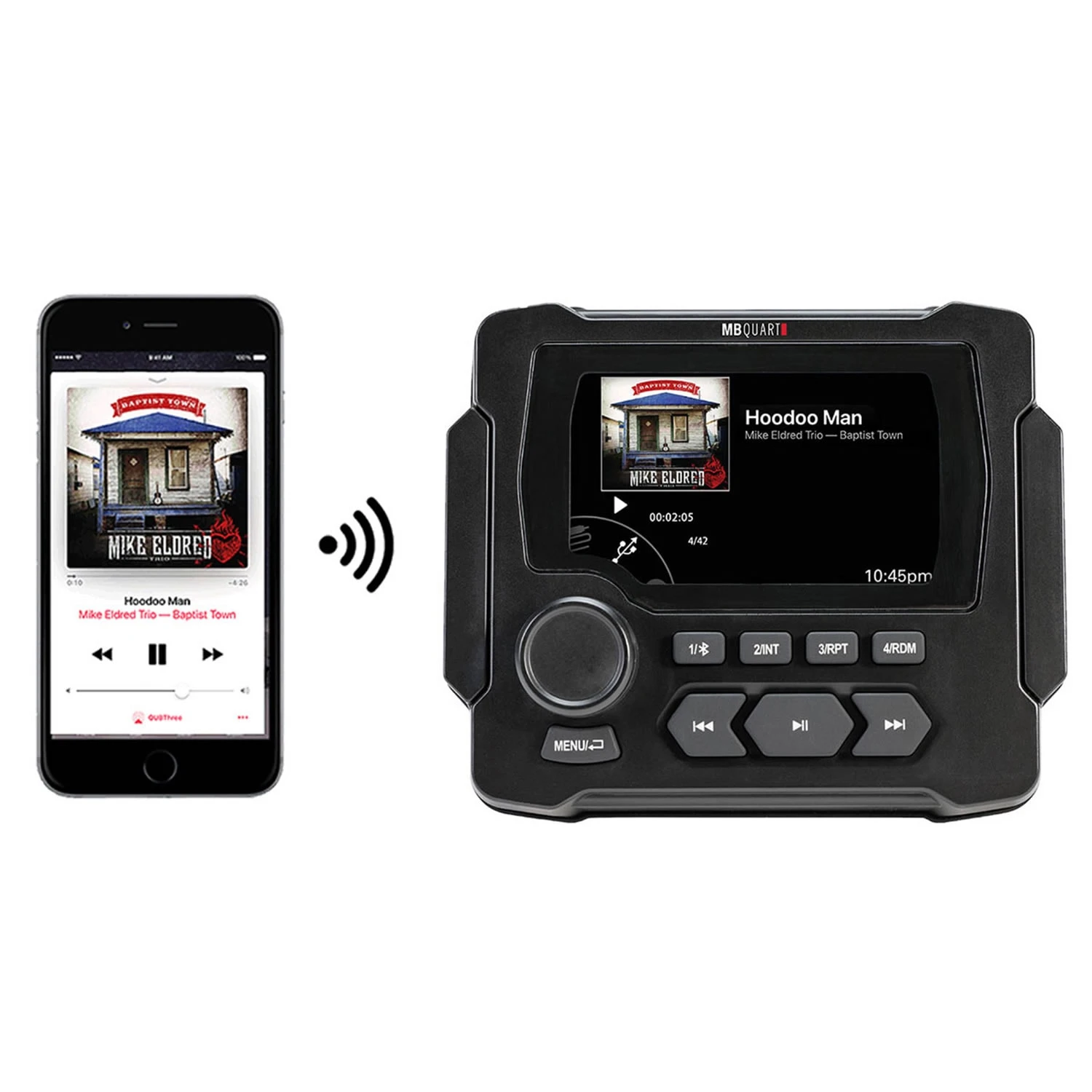

Bluetooth® Connect	Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process.
Secure Simple Pairing™	Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system.
Quick-Pair™	No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select “MB Quart” from your Bluetooth menu and you are connected, QUICKLY.
Built-In Power	Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle.
Control Method	RADIAL SHIFT UX: The GMR-LED features a RADIAL SHIFT UX control system. This is an intuitive control navigation with master control and radial menu selections. Simply scroll the control to the desired feature, hit select, adjust and you are done.
AM/FM Tuner Presets	AM: 12 station, FM: 18 station. AM1, AM2, FM1, FM2, FM3 each memorize 6 stations each.
Frequency Range	FM: 87.5-108, AM: 530-1710
RDS Information	Yes
Weather Band	Includes built-in weather band radio.
Video Input	RCA Style Connector (No Audio)
Video Input Trigger	Single ground wire triggers video input.
Additional Inputs	1 Pair (Aux), 1 USB, 1 Composite Video (Camera)
USB / Apple® / Charging Port	1 Panel mount USB
Bluetooth® Version	Version 4.0
Album Art	Yes
User Presets	Separate presets for radio functions by two users.
Main Connector Type	MOLEX connector for simple installation and removal of unit when needed.
Dual Audio Zone Capability	Control volume in two different areas independently, such as passenger area and tower speakers.
Media Screen	On board 3.5 inch high-contrast LED screen to view media artwork and external camera input from an optional backup camera.
Additional Features	INTEGRATED AMPLIFIER: The built-in amplifier will deliver 40 watts x 4 channels of power into your vehicle. That is 160 of total power. With quick heat dissipation the system can play loud and long for years of service.



Specs:

Weight	1.9 lbs
Type	Source Unit
Brand	MB Quart
Series	Nautic
Category	Marine, Powersports, RV
Condition	New
Color	Black
Crutchfield Available	Yes
Crutchfield Link	https://www.crutchfield.com/p_049GMRLED/MB-Quart-GMR-LED.html
Warranty	1 Year
IPX Rating	IPX67
Source Unit Tuner Section FM Stereo Frequency Range	87.5MHz-108MHz
Source Unit Tuner Section S/N Ratio	> 55dB
Source Unit Bluetooth Range (ft)	32
Source Unit RMS Power Output (watts)	4 x 20
Source Unit Peak Power Output (watts)	4 x 40
Source Unit S/N @1W	81.2dBA
Source Unit Frequency Response (Aux In)	20Hz-20kHz
Source Unit Pre-amp Outputs (Y/N #)	1 CVBS Video Output, 3 Pair Front/Rear/Subwoofer, Yes
Source Unit Pre-amp Voltage	2.0V Single Ended (4.0V)
Source Unit Minimum Impedance (ohms)	4
Source Unit Display Type	3.3 inch full color round LED panel
Source Unit Dimensions Mounting Hole (in)	3.12
Source Unit Dimensions Total Mounting Depth (in)	2.87
Additional Details	MAXIMUM THD+N AT 4 OHMS: 81.2dBA, EFFICIENCY AT FULL POWER 4 OHM (1KHZ): 0.639, IDLE CURRENT: 0.3A, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 4 Volts, SIGNAL TO NOISE (CTA-2006B): Bluetooth -76.2dBA / Aux -86.4dBA, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): Bluetooth -76.2dBA / Aux -86.4dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): Bluetooth 20Hz-20KHz / Aux 20Hz-20KHz, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): Bluetooth 20Hz-20KHz / Aux 20Hz-20KHz, STEREO SEPARATION (AUX INPUT): -64.1dB @ 5kHz, FM MONO USABLE SENSITIVITY: 13dBf / 2.5μV, AM MONO USABLE SENSITIVITY: 15-16μV
